1/2" F chain rotary nozzle with Widia head
excl. VAT
SKU: AVVI-VERIZHNI-DYUZI-1-2-F-AJAHL

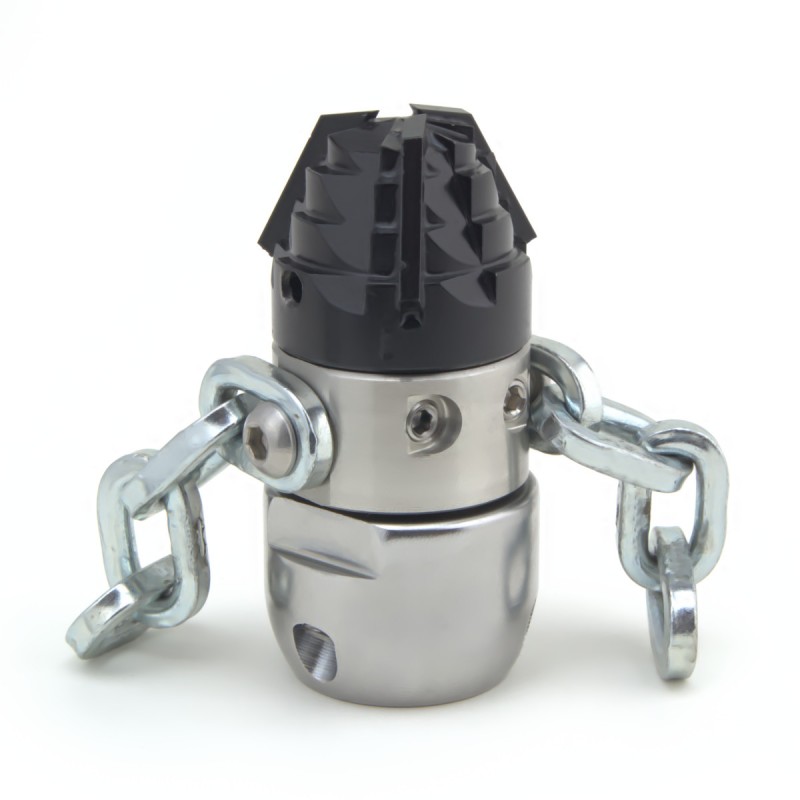

Chain nozzle with Widia head, made of tempered stainless steel, designed for cleaning completely clogged pipes and hard deposits.

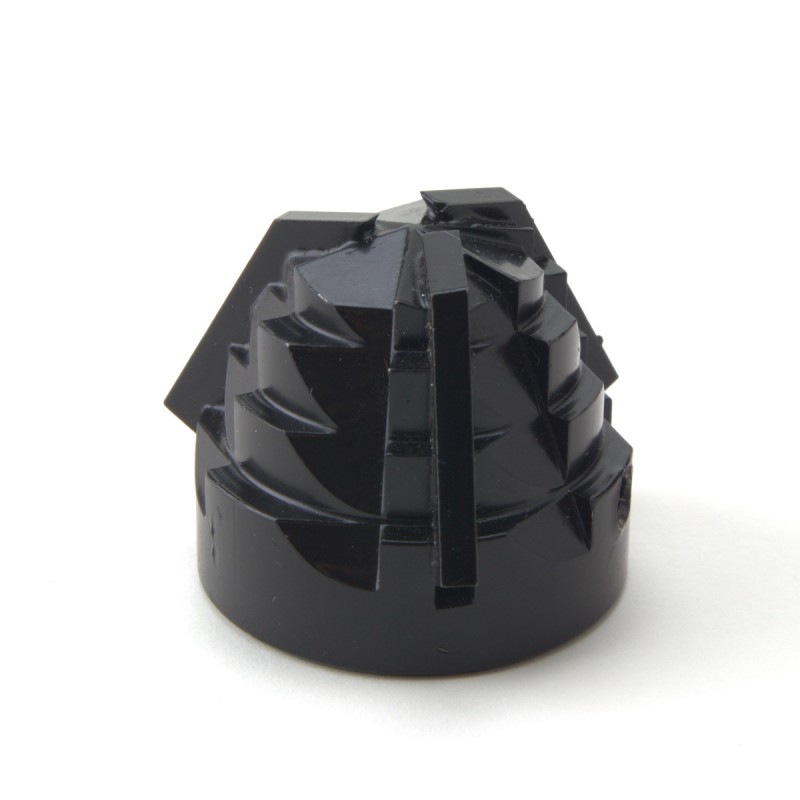

Professional chain nozzle equipped with tempered steel chains. The chains, extending during rotation, allow for the removal of deposited material across the entire surface of the pipe, cleaning it completely. Widia Head: ideal head for operating in completely clogged conduits and materials more resistant like cement. In order to maximize the cleaning effect, it is recommended to use it together with self-centering guides. After use, to preserve efficiency, it is recommended to immerse the nozzle in a lubricating liquid (e.g., gas oil). Product dimensions and jet characteristics depend on the nozzle size. Made in Italy of high quality. Technical data: - Code: 12580.02W / 12620.01W - Nozzle Type: Chain nozzle - Thread size: 1/2" - Construction material: Tempered stainless steel - Head type: Widia - Maximum pressure: 250 bar - Application Ø 35mm: for pipes (mm): 70-200 - Application Ø 55mm: for pipes (mm): 90-500
Inserts *
Nozzle size *
Pump pressure *
Allowed: 50.000 bar – 250.000 bar · step 1.000
Water flow rate *
Allowed: 20.000 l/min – 350.000 l/min · step 1.000
Complete all required characteristics to continue.
