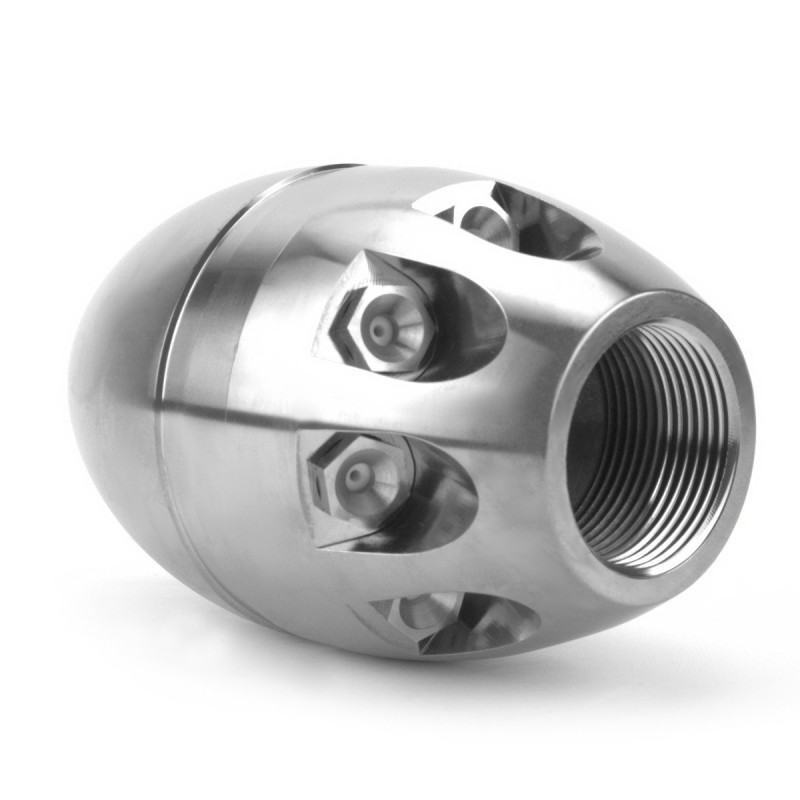

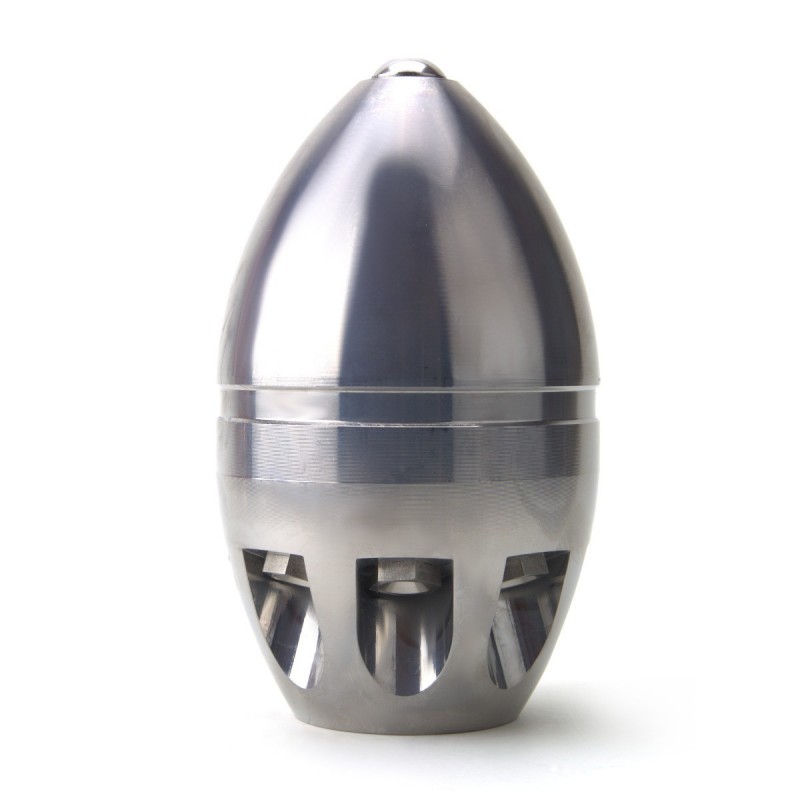

ET4 20° high-efficiency nozzle, 1" F, stainless steel
excl. VAT
SKU: AVVI-ET4-20-ET4-20-HIGH-4SV00
High-efficiency nozzle for removing settled deposits, limescale, sand, silt, gravel, and mud.
High-efficiency ET4 20° nozzle made of stainless steel with 1" F thread. This tool is specifically designed for the effective removal of heavy sediments such as sand, mud, gravel, and limescale deposits in pipes with diameters ranging from 150 mm to 500 mm. The nozzle features 8 rear jets at a 20° angle for powerful propulsion and cleaning, along with one front jet for breaking through obstacles. Made of high-quality stainless steel, it ensures a long service life and corrosion resistance. Made in Italy. Technical data: - Code: 15140.04AI - Rear jets: 8 x 1/4"M - Front jet: 1 - Tcei M10 - Drilling angle: 20° - Dimensions ØxL: 88x145 mm - Weight: 3.70 kg - For pipes Ø: 150-500 mm - Maximum working pressure: 150 bar - Thread size: 1" F - Material: Stainless steel
Inserts *
Pump pressure *
Allowed: 50.000 bar – 250.000 bar · step 1.000
Water flow rate *
Allowed: 20.000 l/min – 350.000 l/min · step 1.000
Complete all required characteristics to continue.
