Moro Kaiser Ecotrolley Stage 5 Diesel Engine Pump Unit

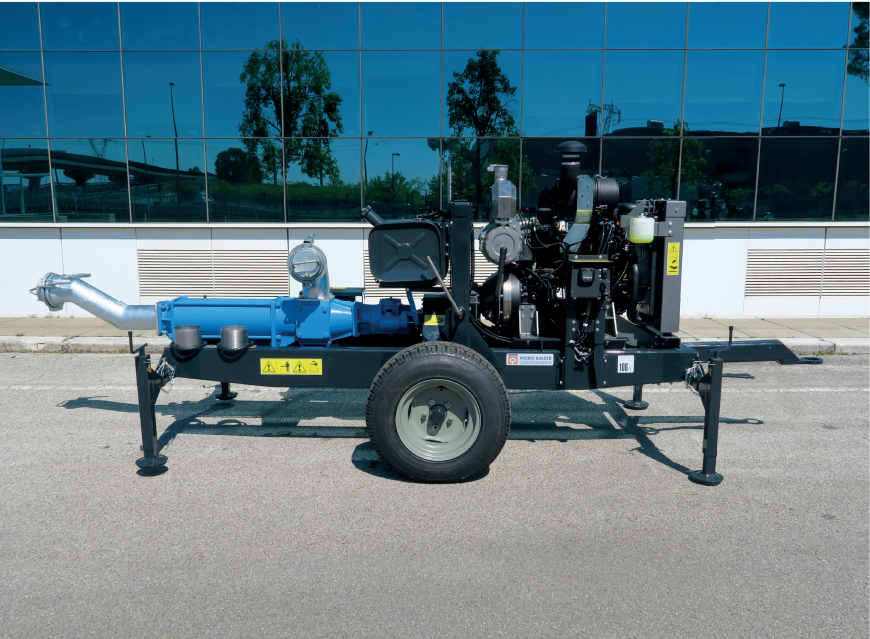

The Moro Kaiser Ecotrolley Stage 5 is a trailer-mounted mobile pump unit designed for industrial and municipal applications. The system features a self-priming Moro PV 1200 or 3000 pump powered by a Yanmar auxiliary diesel engine (Stage V). It is equipped with a clutch, gearbox, and mechanical rotation inverter for the pump, all installed on a single braking axle trolley with 4 parking feet. Discharge pressure can be varied in proportion to speed, providing continuous flow without pulses or turbulence. The absence of valves and filters, combined with the ability to reverse pump rotation, eliminates locking hazards. Suitable for the chemical industry, mining, food industry, civil protection, oil tank cleaning, irrigation, and decanting of high-viscosity liquids. Technical data: - Builder: Moro Kaiser s.r.l. - Emissions: EU 2016/1628 STAGE V - Pump type: Self priming Moro PV 1200 / 3000 - Max pressure: 8 bar - Working pressure: 6 bar - Max suction height: 7 m - Pump RPM: 450 rev/min - Engine 1200 D: Yanmar - 3TNV88C, 3 in line, 1642 cc - Power 1200 D (Int./Cont.): 27.5 kW / 26.2 kW @ 3000 rpm - Engine 3000 D: Yanmar - 4TNV98C, 4 in line, 3319 cc - Power 3000 D (Int./Cont.): 51.7 kW / 50.4 kW @ 2500 rpm - Max air flow (PV 1200): 72 m³/h - Max air flow (PV 3000): 180 m³/h - Dimensions 1200 D (L-W-H): 3.800 mm x 1.360 mm x 1.520 mm - Weight 1200 D: 860 kg - Dimensions 3000 D (L-W-H): 4.462 mm x 1.456 mm x 1.703 mm - Weight 3000 D: 1.260 kg
