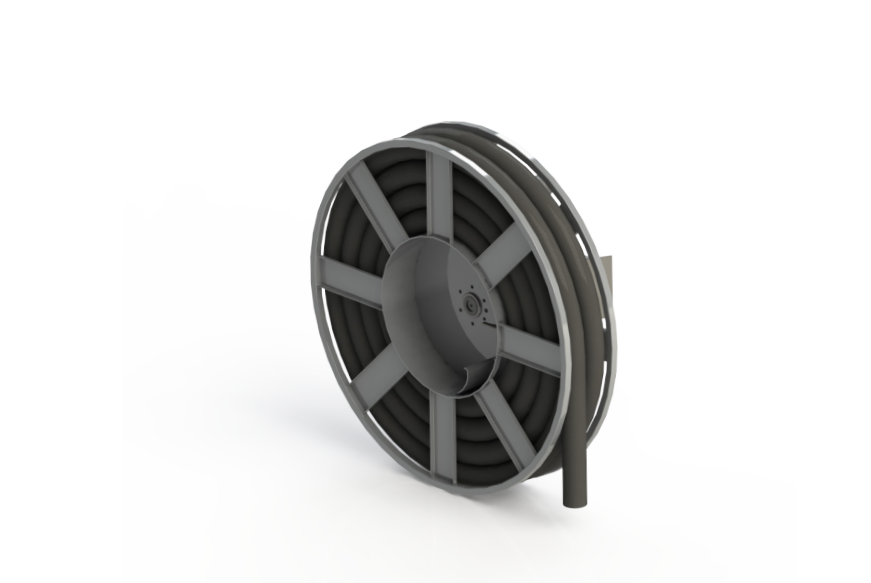

Moro Kaiser Tilting Rear Door Suction Hose Reel

This fixed hose reel is designed to assist in daily operations by allowing the operator to drive the hose very quickly to the suction point using a hydraulic motor. The system features a hydraulic distributor for safe control and precise regulation of the winding and unwinding speed. Constructed entirely from stainless steel for maximum durability. Suitable for 3" (Ø80) or 4" (Ø100) hoses. The maximum capacity is up to 50 meters for a 3" hose and 30 meters for a 4" hose. Note: Hose is not included. Technical data: - Max hydraulic motor oil flowrate: 25 l/min - Maximum distributor pressure: 80 bar / 1160 psi - Minimum tank diameter suggested: Ø 1700 mm - Material: Stainless steel - Drive: Hydraulic motor - Control: Hydraulic distributor with flow regulator - Weight (3" version): 150 kg - Weight (4" version): 170 kg - Dimensions 3" 25 m: Ø 1400 mm, Width 270 mm - Dimensions 3" 50 m: Ø 1400 mm, Width 480 mm - Dimensions 4" 30 m: Ø 1600 mm, Width 430 mm
